Apevia RAPTOR500W Raptor 500W ATX Power Supply with 120MM Black Fan

Brand: Apevia

Features:

• Apevia RAPTOR500W Raptor 500W ATX Power Supply With 120MM Black Fan.
• Connectors:1 x 20/24pin Main Power, 1 x 8pin (4+4pin) CPU 12V, 3 x SATA, 3 x Molex, 1 x 6+2-pin PCI-express, 1 x Floppy

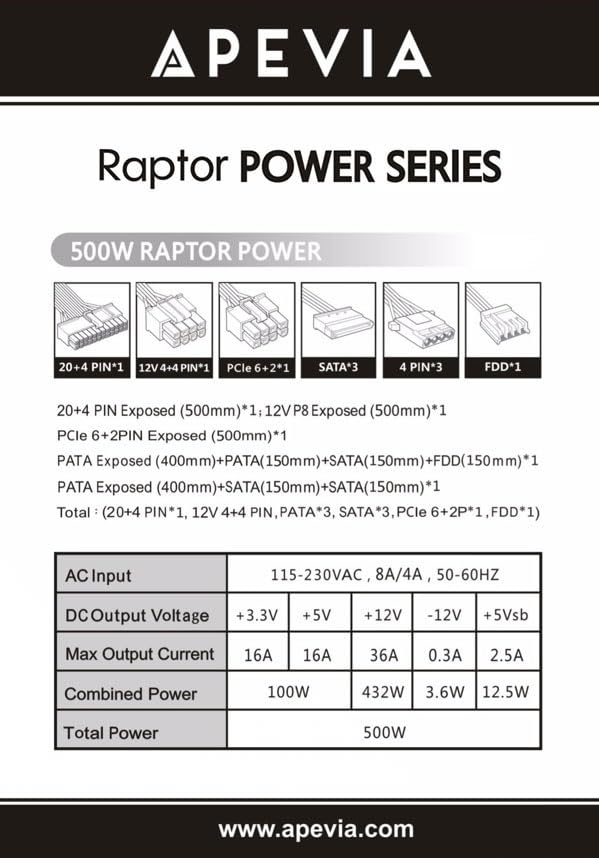

• 1 x Auto-Thermally Controlled Red 120mm Fan (No LED). 115/230V Switch. Max. Output Current +3.3V(16A), +5V(16A), +12V(36A), -12V(0.3A), +5Vsb(2.5A)
• Safety Protections. Standard ATX Size: 5.9" x 5.5" x 3.4" (L x W x H)
• NOTE: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
• NOTE: The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector.
• NOTE: The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector.
• NOTE: The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power.

Binding: Personal Computers

model number: RAPTOR500W

Part Number: RAPTOR500W

Details: Apevia RAPTOR500W Raptor Series 500W ATX Power Supply with 1 x 120mm Auto-Thermally Controlled Black Case Fan (No LED Lights). 1 x 20/24pin Main Power /1 x 8pin CPU connector (P4+4) 12V / 3 x SATA/ 3 x Molex/ 1 x 6+2-pin PCI-express/ 1 x Floppy Connectors. 115/230V Switch, 5% Tolerance of 5V, 3.3V & 12V Output. Max. Output Current +3.3V(16A), +5V(16A), +12V(36A), -12V(0.3A), +5Vsb(2.5A), Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections. For safety, do not overload, abuse or modify the power supply unit. Use of this unit for Bitcoin Mining is not suggested since it will shorten the life and cause failures of power supply. Use for mining purposes is not covered by warranty. NOTE: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on. The 8pin CPU connector can be split apart to become a 4+4 connector by pushing one end of the 4pin down and the other end of the 4pin up for motherboards that require a 4pin power connector. The 8pin PCI-E GPU connector can be split apart to become a 6+2 connector by pushing one end of the 6pin down and the other end of the 2pin up for graphics cards that require a 6pin power connector. The 24pin motherboard connector can be split apart to become a 20+4 connector by pushing one end of the 20pin down and the other end of the 4pin up for motherboards that require a 20pin power.

EAN: 0810047131786

Package Dimensions: 9.5 x 7.4 x 3.9 inches
