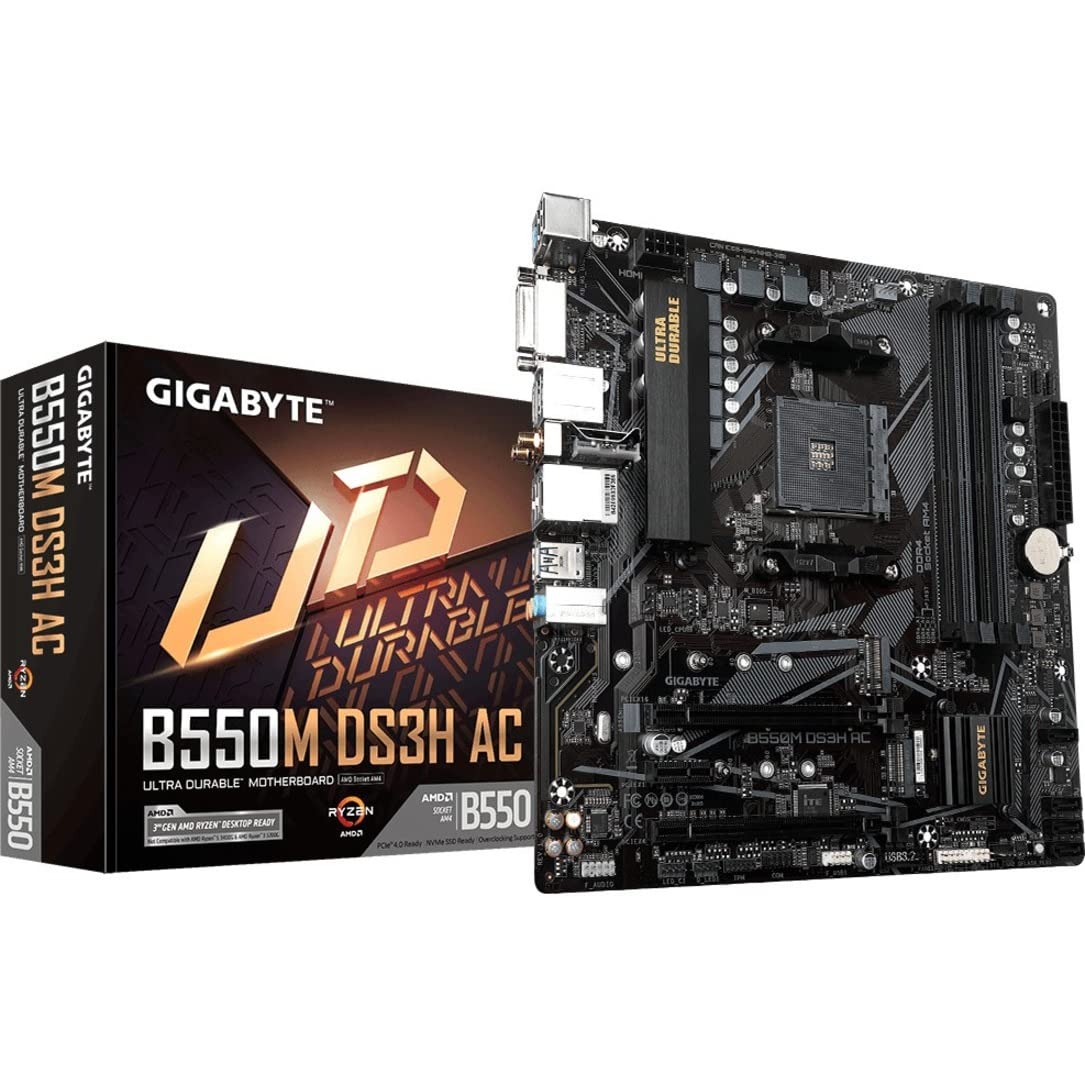

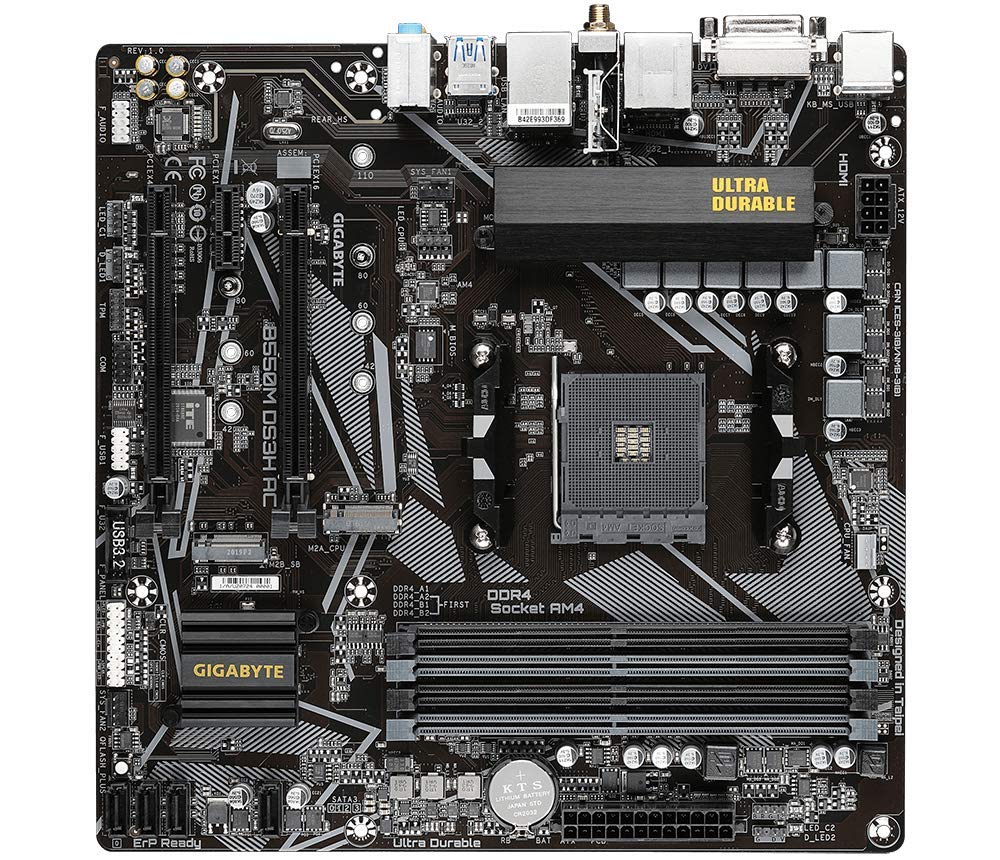

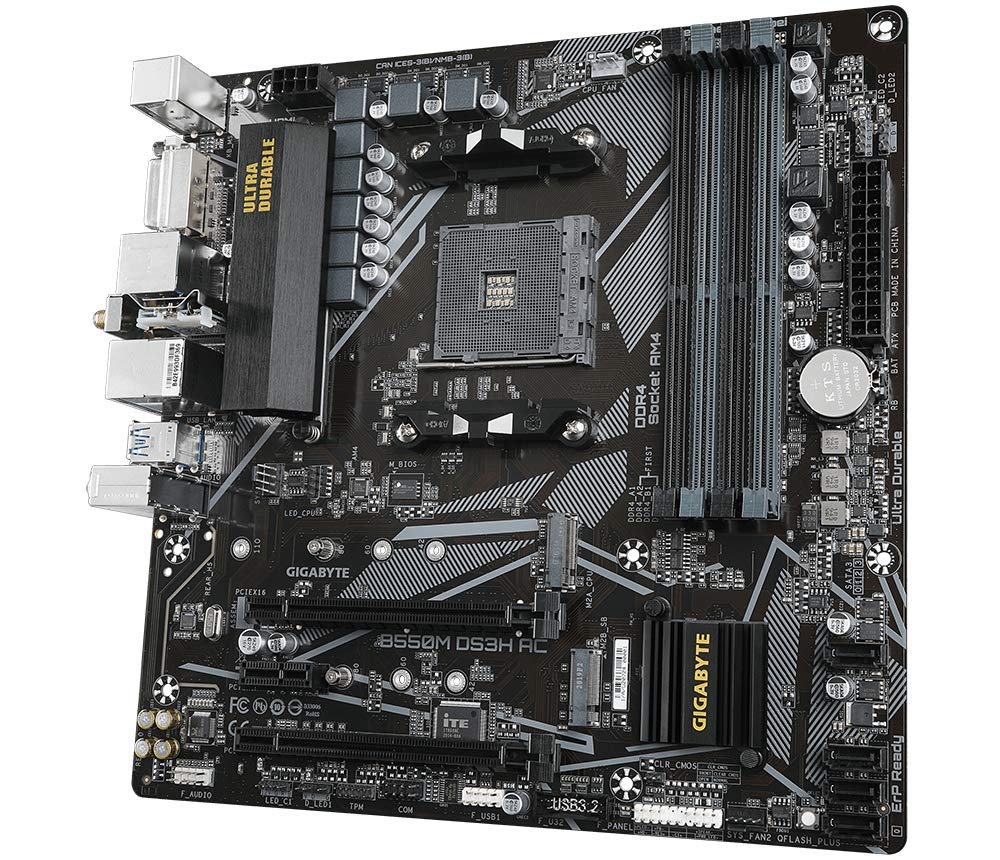

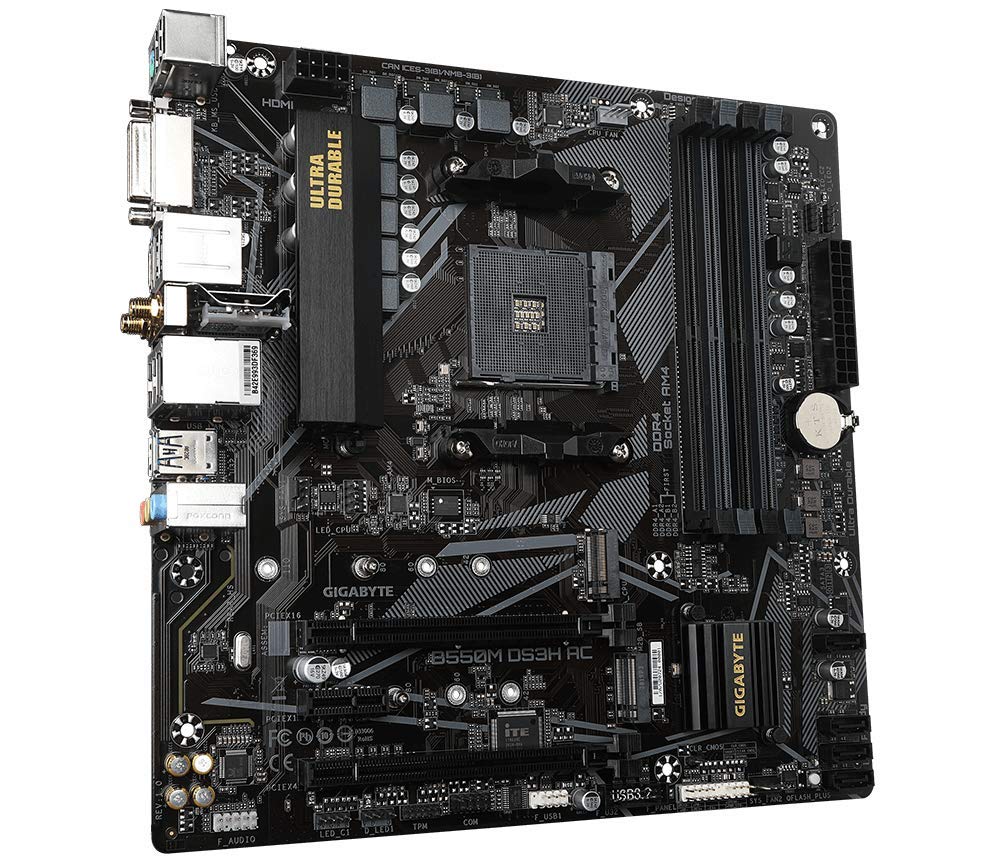

GIGABYTE B550M DS3H AC (AM4 AMD/B550/Micro ATX/Dual M.2/SATA 6Gb/s/USB 3.2 Gen 1/PCIe 4.0/HMDI/DVI/DDR4/Motherboard)

Brand: GIGABYTE

Features:

• Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
• 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
• Ultra Durable PCIe 4.0 Ready x16 Slot
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors

Binding: Personal Computers

Release Date: 17-12-2020

model number: B550M

Part Number: B550M DS3H AC

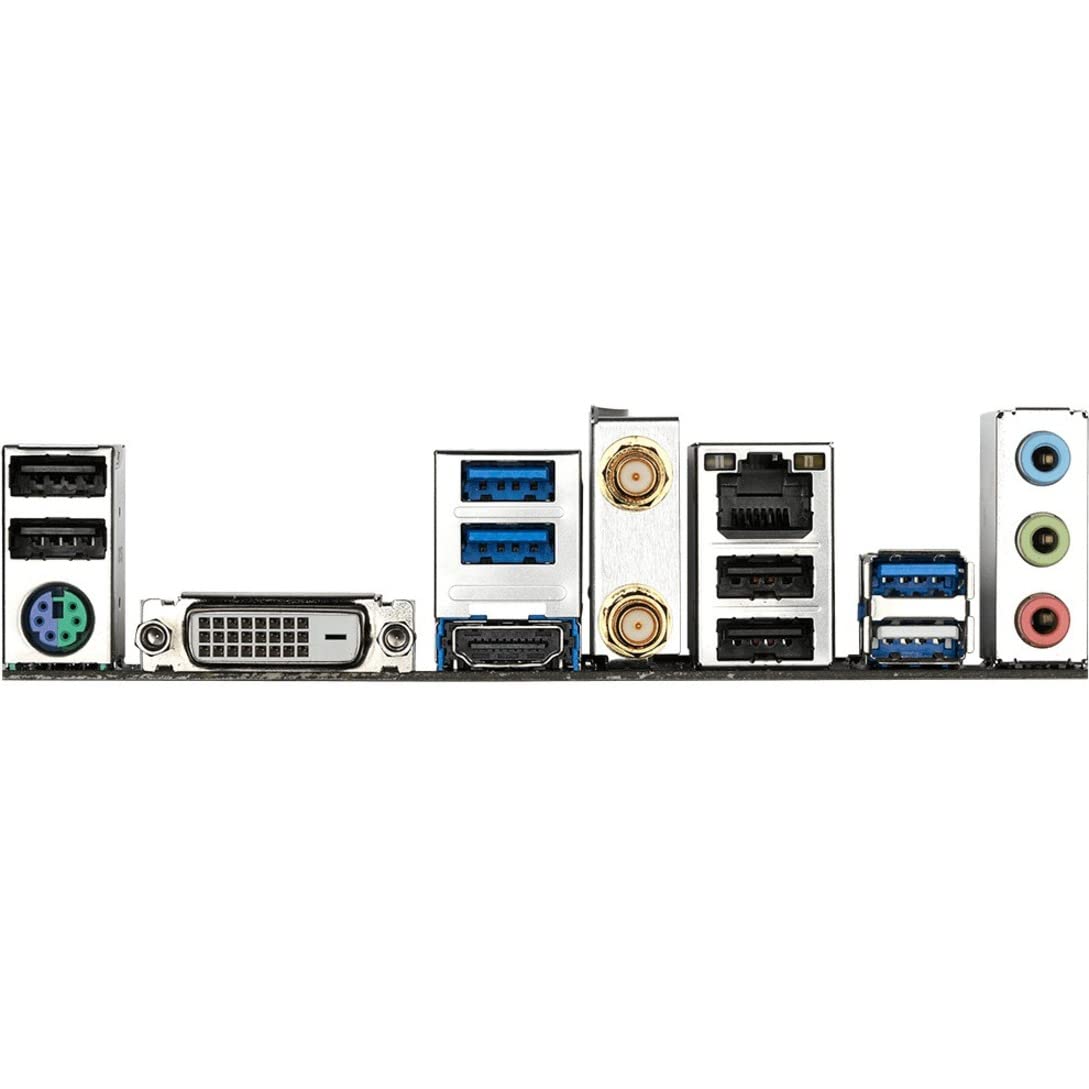

Details: Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs Ultra Durable PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management Rear HDMI & DVI Support RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card Anti-Sulfur Resistors Design

EAN: 0889523024416

Package Dimensions: 10.9 x 10.8 x 2.8 inches
